Features:
High temperature protection function, accurate flow regulation, stable and comfortable, safe and energy saving;
Dual system settings optimize the hydraulic balance of the pipeline, making the heating of the floor heating pipeline more rapid and uniform;

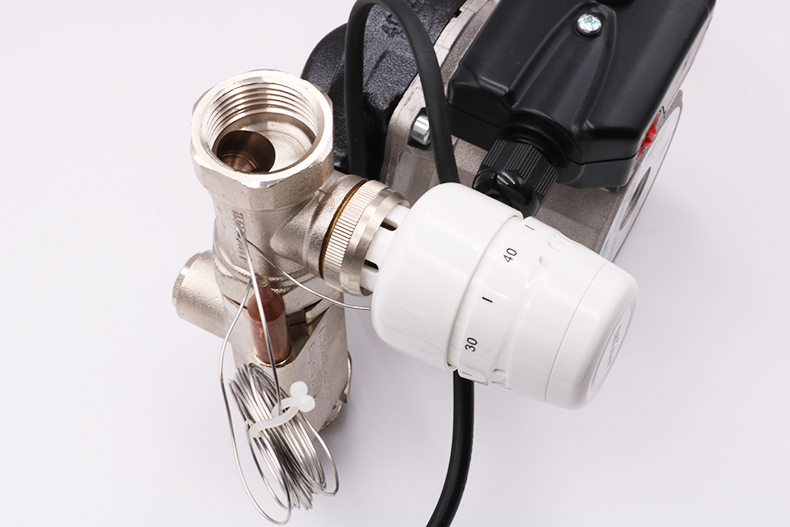

Adjustable thermostatic mixing valve, no external power supply required, temperature range 35-65℃;
Equipped with canned pump, adjustable in three gears, quiet and comfortable;
The main body is made of CW617 European standard brass, which is environmentally friendly and healthy.
specifications:
Rated voltage: 220V/50Hz
Temperature adjustment range: 35℃～65℃ (factory setting 45℃)
Water distributor interface: G1
Water temperature: ≤90℃
Heat source interface: G1
Maximum working pressure: 10bar
Center distance: 210mm
Applicable area: below 200m2
System circulating pump lift: 3, 5, 6 meters adjustable in three gears
